| Specifications | |
|---|---|
| Form factor | Fixed 1 U access |
| Port density | 1GbE and SFP+ uplink port options |
| Wired Assurance | Yes |
| Campus Fabrics | Virtual Chassis |
| Cloud Managed | Yes |
| Dimensions (W x H x D) | EX2300-24T/24P/48T: 17.4 x 1.75 x 10.2 in (44.19 x 4.45 x 25.9 cm) 1 rack unitEX2300-48P: 17.4 x 1.75 x 12.2 in (44.19 x 4.45 x 30.98 cm) 1 rack unit |
| Backplane speed | 80 Gbps |
| Data rate | EX2300-24P/24T: 128 Gbps EX2300-48T/48P: 176 Gbps |
| Throughput | EX2300-24P/24T: 95 Mpps (wire speed) EX2300-48T/48P: 130 Mpps (wire speed) |
| Resiliency | Integrated power supply and fans |
| Traffic monitoring | sFlow |
| Quality-of-service (QoS) queues/port | 8 |
| MAC addresses | 16,000 |
| Jumbo frames | 9216 bytes |
| IPv4 unicast/multicast routes | 4096 / 2048 |
| IPv6 unicast/multicast routes | 2048 / 1024 |
| Number of VLANs | 4093 |
| ARP entries | 1500 |

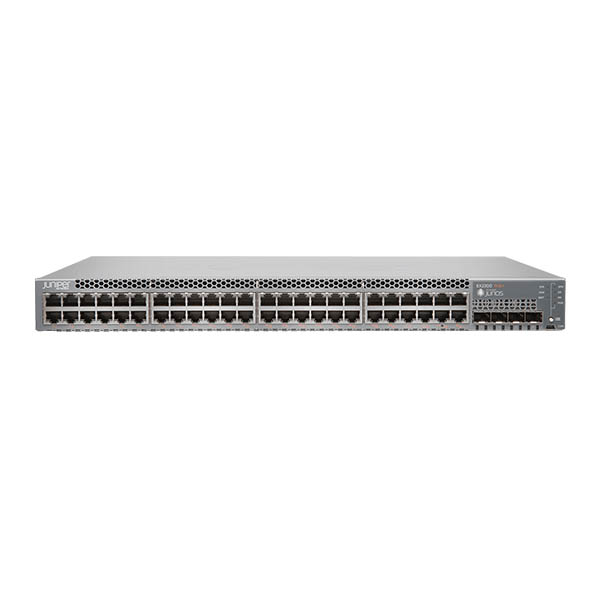

The EX2300 Ethernet Switch delivers a compact, high-density, cost-effective solution for small network environments where space and power are at a premium. With a small, 1 U footprint, the EX2300 is perfect for access-layer deployments in micro branches, retail and workgroup environments, and converged network access in larger networks.
The EX2300 is cloud-ready and ZTP-enabled, so you can onboard, configure, and manage it with Juniper Mist™ Wired Assurance for improved connected-device experiences. In addition, the Juniper Mist Cloud streamlines deploying and managing your campus fabric, while Mist AI simplifies operations and improves visibility into the performance of connected devices. EX2300 switches support Juniper’s Virtual Chassis technology, which simplifies operations by interconnecting up to four switches that can be managed as a single logical device.
